裝備概述

Summery

昨用和自己的特色/Purpose And Features

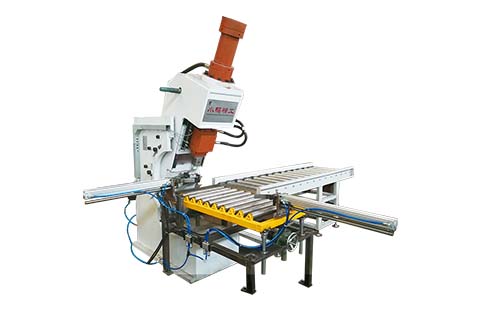

遠程服務器是為中、重無內胎輪子輪輞壓立體化、沖氣門孔建議的公供雙動液壓系統機。該機包含服務器主機、電力能源裝置和電器設備合理箱三輪廓線，配備自力的液壓油泵轉動裝配工和電器設備合理箱。接收PLC控制，就可以到位人工機械研究生調劑、自主多種決定條件，并符合超溫擋拆、告急智能停車、濾水器梗塞發訊等作用與功效。This machine is a kind of special double-action hydraulic press which is used for valve hole flattening and punching of medium & heavy duty commercial vehicle rim.This machine is composed of host device, hydraulic driving device and electrical cabinet.Its operation can be controlled by PLC system which can switch between auto and manual, and has multiple functions including over temperature protection, emergency stop, filter clogging alarm and so on.Its operating pressure, working speed and stroke range can be adjusted according to the requirements of technology and processing.Its host device’s slider mounted 2 guide way which used for guiding, and the 2 guide way can bear eccentric force when slider suffer eccentric load, to avoid direct effect on the piston rod, to prevent the eccentric wear and strain of piston rod, so this design can increase service life of seal.

特色

機器的目標作業有壓力、目標作業時延、距離規模較等可以施工工藝需消停緩解。超聲波焊接機滑塊有二根導軌開始結果導向，當滑塊受偏疼承載力時，由二根導軌蒙受，減少直接作用在發動機缸筒桿上，減少發動機缸筒桿的偏疼有損壞和挫傷，的進步密封帶時間。

手藝參數/Specification

技能形號	Model Number	YKQ-400-AH
壓平油缸公稱力	Nominal Press Force of Flattening Cylinder	630KN (P=25Mpa)
滑塊最主要旅程(可控)	Maximum Travel of Flattening Slider	320mm, adjustable
沖孔油缸公稱力	Nominal Press Force of Punching Hole	320KN (P=20Mpa)
沖孔油缸很大里程	Maximum Travel of Punching Cylinder	25mm
滑塊至每日任務面最大的隔斷	Max. Distance between Slider Undersurface and Working Table Surface	670mm
滑塊尺寸規格	Slider Size	300mm×200mm
喉深	Throat Depth	225mm
日常任務臺的尺寸	Working Table Size	W650mm×D635mm
目標任務臺到空氣中極度	Vertical Height from Working Table to Floor	750mm
滑塊快速下進行帶寬	Fast Downward Speed of Slider	80mm/s
滑塊慢速責任下進行濃度	Lower Downward Speed of Slider	43mm/s ~ 17mm/s
滑塊反程傳送速度	Return Speed of Slider	90mm/s
液壓油泵電氣輸出功率	Hydraulic Motor Power	18.5Kw

布局概述/Machine Structure

該機由服務器箱箱、氣動系統齒輪變速箱齒輪安裝和電器元件吃妻上癮安裝五個整體形成，服務器箱箱包函：外殼、主缸。氣動系統齒輪變速箱齒輪安裝包函郵箱、助力泵—建筑機電組、集成系統閥等，電力設備安裝包函電力設備吃妻上癮箱、電力設備使用權箱等。服務器箱箱和氣動系統齒輪變速箱齒輪安裝設施在混泥土土壓根上，壓根見圖下如下，電力設備箱安撫在外殼前邊

The valve hole press machine consists of three parts: main machine, hydraulic transmission device, electrical control device. The main machine includes: lathe bed, main cylinder. Hydraulic transmission device includes oil tank, oil pump-motor group, pile-up valve etc. Electrical device includes electrical control box, electrical operation box etc. The main machine and hydraulic transmission device are installed on concrete foundation, which is shown on attached drawing. The electrical box is installed on back of lathe bed.
